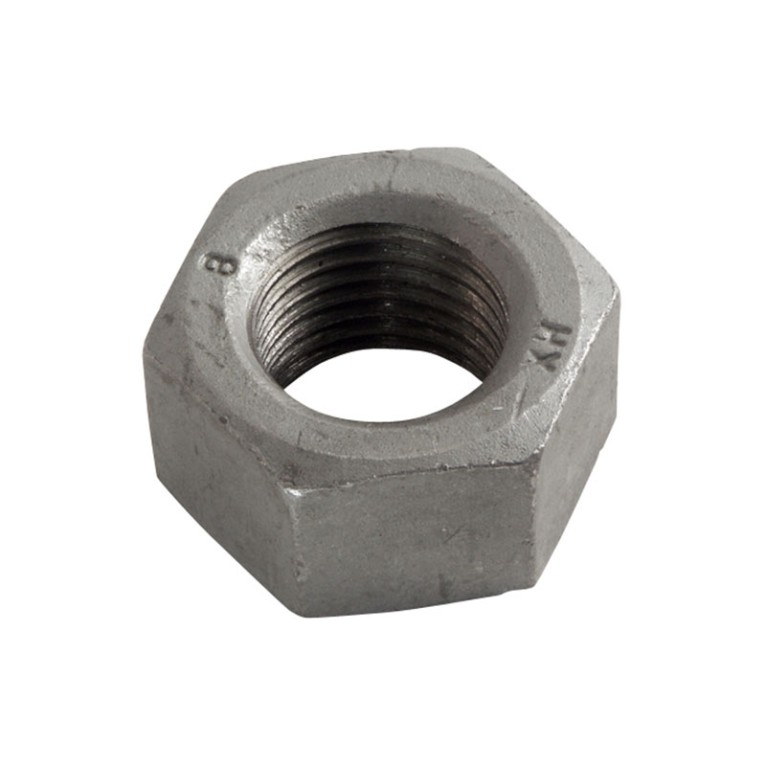

+91-9376329179DIN 6915
STRUCTURE HEXAGONAL
Class:
4,5,6,8,10
Finish:
BZP, HOT DIP GALV
Thread:
METRIC
- DIN 6915 is a German standard that outlines the specifications for nuts, including their shape, drive style, torque, thread type, standard, size, tolerance, materials, strength class, and possible coatings or strength properties. These nuts serve as releasable connections or fastening elements for various components. They are commonly used in Mechanical Engineering, Automotive, and Steel Construction industries.
DIN 6915 - Dimension
| Size. | Pitch (p) | Width across corner (e) | Width across Flat (s) | Thickness (m) | da | dw | Minor diameter (Bore) (d) | ||||
| MM | Min. | Min. | Max. | Min. | Max. | Min | Max. | Min. | Min. | Max. | |
| M12 | 1.75 | 23.91 | 21.16 | 22.00 | 9.64 | 10.00 | 12.00 | 13.00 | 20.10 | 10.20 | 10.30 |
| M16 | 2.00 | 29.56 | 26.16 | 27.00 | 12.30 | 13.00 | 16.00 | 17.30 | 24.90 | 12.10 | 12.20 |
| M20 | 2.50 | 35.03 | 31.00 | 32.00 | 14.90 | 16.00 | 20.00 | 21.60 | 29.50 | 17.60 | 17.70 |
| M-22 | 2.50 | 39.55 | 35.00 | 36.00 | 16.90 | 18.22 | 22.00 | 23.70 | 33.30 | 19.60 | 19.70 |
| M-24 | 3.00 | 45.20 | 40.00 | 41.00 | 18.70 | 21.00 | 24.00 | 25.90 | 38.00 | 20.70 | 20.80 |
| M-27 | 3.00 | 50.85 | 45.00 | 46.00 | 20.70 | 22.00 | 27.00 | 29.10 | 42.80 | 23.80 | 23.90 |
| M-30 | 3.50 | 55.37 | 49.00 | 50.00 | 22.70 | 24.00 | 30.00 | 32.40 | 46.60 | 26.50 | 26.60 |
| M-36 | 4.00 | 66.44 | 58.80 | 60.00 | 27.70 | 29.00 | 36.00 | 38.90 | 55.90 | 32.10 | 32.20 |
| M-42 | 4.50 | 76.95 | 68.10 | 70.00 | 32.40 | 34.00 | 36.00 | 38.90 | 64.70 | 37.70 | 37.80 |
| M-45 | 4.50 | 82.60 | 73.10 | 75.00 | 34.40 | 36.00 | 39.00 | 42.10 | 69.50 | 40.90 | 41.00 |
| M-48 | 5.00 | 88.25 | 78.10 | 80.00 | 36.40 | 38.00 | 42.00 | 45.40 | 74.20 | 43.10 | 43.20 |
| M-56 | 5.50 | 99.20 | 87.80 | 90.00 | 43.40 | 45.00 | 45.00 | 48.60 | 83.40 | 50.80 | 50.90 |
| M-64 | 6.00 | 110.50 | 97.80 | 100.00 | 49.10 | 51.00 | 48.00 | 51.80 | 92.90 | 57.80 | 57.90 |
Weight Chart
| Size. | M12 | M16. | M20 | M22 | M24 | M27 | M30 | M36 | M39 | M42 | M45 | M48 | M56 | M64 |
| 2.30 | 4.50 | 6.90 | 9.80 | 14.50 | 20.70 | 26.20 | 46.00 | 69.90 | 81.80 | 97.20 | 116.90 | 170.40 | 231.70 |
