+91-9376329179DIN 125

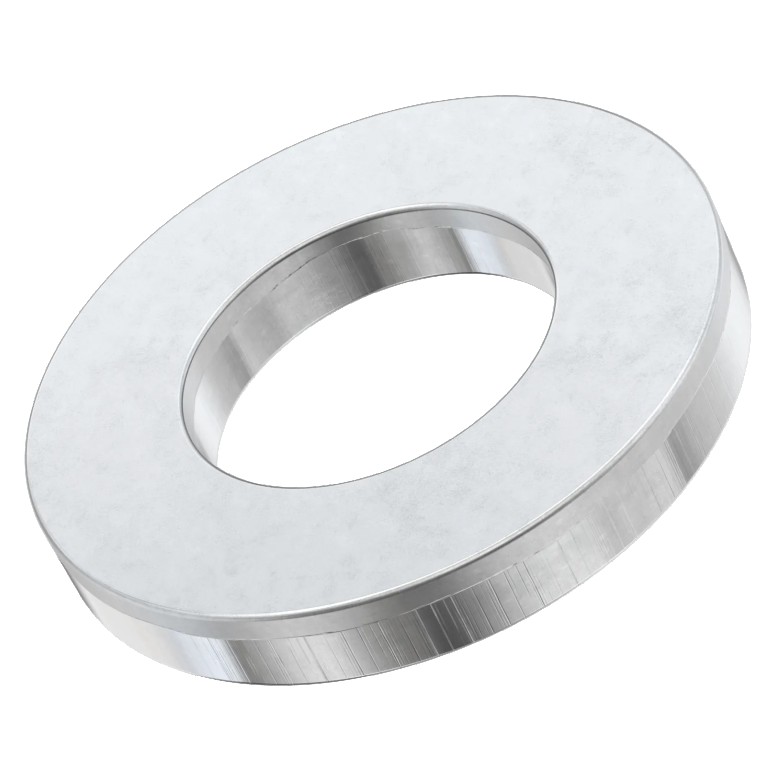

PLAIN WASHER
Quality:
200-250HV & 300-400 HV
Coating:
HOT DIP GALV., ZINC PLATED, DACROMET, GEOMET, BLACK
Threads:
METRIC
- Metric DIN 125 Flat Washers are standardized metric flat washers. These washers consist of circular metal discs with centrally located holes. They serve the purpose of distributing the load over a wider bearing surface. These washers are commonly positioned either beneath the head of a bolt or below the nut. The primary function of using these washers is to evenly distribute the load over a larger area, thereby minimizing the risk of damaging the underlying bearing surface.
- Furthermore, flat washers can be utilized when the outer diameter of a mating nut is smaller than the hole through which the screw is inserted. In such cases, the washer fills the gap and ensures a secure and stable connection. By providing additional support and preventing direct contact between the fastener and the surface, flat washers help enhance the overall reliability and integrity of the assembly.
DIN 125- DIMENSIONS
| Nominal Size (mm) | Inside Diameter (mm) | Outside Diameter (mm) | Thickness (mm) |
|---|---|---|---|
| M1.6 | 1.7 | 4 | 0.3 |
| M2 | 2.2 | 5 | 0.3 |
| M2.5 | 2.7 | 6 | 0.5 |
| M3 | 3.2 | 7 | 0.5 |
| M4 | 4.3 | 9 | 0.8 |
| M5 | 5.3 | 10 | 1 |
| M6 | 6.4 | 12 | 1.6 |
| M8 | 8.4 | 16 | 1.6 |
| M10 | 10.5 | 20 | 2 |
| M12 | 13 | 24 | 2.5 |
| M14 | 15 | 28 | 2.5 |
| M16 | 17 | 30 | 3 |
| M18 | 19 | 34 | 3 |
| M20 | 21 | 37 | 3 |
| M22 | 23 | 39 | 4 |
| M24 | 25 | 44 | 4 |
| M27 | 28 | 50 | 4 |
| M30 | 31 | 56 | 4 |
| M33 | 34 | 60 | 5 |
| M36 | 37 | 66 | 5 |
| M39 | 40 | 72 | 6 |
| M42 | 43 | 78 | 6 |
| M45 | 46 | 85 | 7 |
| M48 | 49 | 92 | 7 |
| M52 | 53 | 98 | 8 |
| M56 | 57 | 105 | 8 |
| M60 | 61 | 112 | 9 |
| M64 | 65 | 120 | 10 |
Weight Chart
| Size | Weight |
|---|---|
| M1.6 | 0.024 |
| M1.7 | 0.031 |
| M2 | 0.037 |
| M2.3 | 0.092 |
| M2.5 | 0.088 |
| M2.6 | 0.127 |
| M3 | 0.119 |
| M3.5 | 0.155 |
| M4 | 0.308 |
| M5 | 0.443 |
| M6 | 1.02 |
| M7 | 1.39 |
| M8 | 1.83 |
| M10 | 3.57 |
| M12 | 6.27 |
| M14 | 8.62 |
| M16 | 11.3 |
| M18 | 14.7 |
| M20 | 17.2 |
| M22 | 18.3 |
| M24 | 32.3 |
| M26 | 43.7 |
| M27 | 42.3 |
| M28 | 40.9 |
| M30 | 53.6 |
| M32 | 77.4 |
| M33 | 75.3 |
| M35 | 94.3 |
| M36 | 92.1 |
| M38 | 136 |
| M39 | 133 |
| M40 | 130 |
| M42 | 183 |
| M45 | 220 |
| M48 | 294 |
| M50 | 284 |
| M52 | 330 |
| M55 | 431 |
| M56 | 425 |
| M58 | 472 |
| M60 | 458 |
| M64 | 492 |
| M68 | 586 |
| M72 | 626 |
| M76 | 749 |
