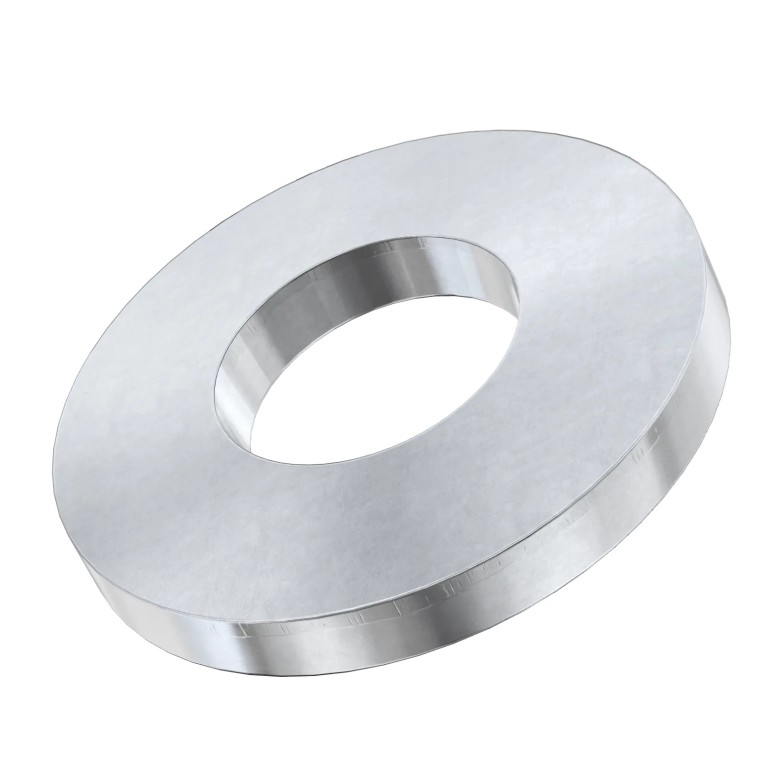

Belleview Washers
Coating:
ZINC PLATED
Threads:
METRIC
- Belleville washers, classified as spring type washers, are commonly used to apply a flexible pre-load to bolted joints. They belong to the family of spring washers and can be employed individually or stacked to increase frictional grip. The stacking orientation can be adjusted based on the specific requirements of the application.
- One of the notable advantages of these washers, offered by SUR Marketing, is their exceptional load-bearing capability, even in compact installation spaces. The versatility of Belleville washers lies in their ability to be stacked in countless configurations, allowing for various applications limited only by one's imagination.
- This is attributed to their unique structure, which involves a force applied from the periphery and a counteracting force from the conical center. By arranging the washers in a suitable manner, they can also provide a damping effect.
- Furthermore, they are available in stainless steel, carbon steel, and alloy steel variants, ensuring durability, increased resistance to wear and tear, and enhanced corrosion resistance, which are key features offered by SUR Marketing.
Belleview Washers - Dimension
| Nominal size | d1 | d2 | s | h | Weight kg/1000pcs | For thread size | |
|---|---|---|---|---|---|---|---|
| H14 | h14 | max. | min. | ||||
| 2 | 2,2 | 5 | 0,4 | 0,6 | 0,5 | 0,05 | M |
| 2,5 | 2,7 | 6 | 0,5 | 0,72 | 0,61 | 0,09 | M2,5 |
| 3 | 3,2 | 7 | 0,6 | 0,85 | 0,72 | 0,14 | M3 |
| 3,5 | 3,7 | 8 | 0,8 | 1,06 | 0,92 | 0,25 | M3,5 |
| 4 | 4,3 | 9 | 1 | 1,3 | 1,12 | 0,38 | M4 |
| 5 | 5,3 | 11 | 1,2 | 1,55 | 1,35 | 0,69 | M5 |
| 6 | 6,4 | 14 | 1,5 | 2 | 1,7 | 1,43 | M6 |
| 7 | 7,4 | 17 | 1,75 | 2,3 | 2 | 2,53 | M7 |
| 8 | 8,4 | 18 | 2 | 2,6 | 2,4 | 3,13 | M8 |
| 10 | 10,5 | 23 | 2,5 | 3,2 | 2,8 | 6,45 | M10 |
| 12 | 13 | 29 | 3 | 3,95 | 3,43 | 12,4 | M12 |
| 14 | 15 | 35 | 3,5 | 4,65 | 4,04 | 21,6 | M14 |
| 16 | 17 | 39 | 4 | 5,25 | 4,58 | 30,4 | M16 |
| 18 | 19 | 42 | 4,5 | 5,6 | 5,08 | 38,9 | M18 |
| 20 | 21 | 45 | 5 | 6,4 | 5,6 | 48,8 | M20 |
| 22 | 23 | 49 | 5,5 | 7,05 | 6,15 | 63,5 | M22 |
| 24 | 25 | 56 | 6 | 7,75 | 6,77 | 92,9 | M24 |
| 27 | 28 | 60 | 6,5 | 8,35 | 7,3 | 113 | M27 |
| 30 | 31 | 70 | 7 | 9,2 | 8 | 170 | M30 |
